DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel
DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel

DE Series Custom Cnc Fiber Laser Cutting Machining Service Fabrication Sheet Metal Aluminium Stainless Steel

Get a Quote
  • Description
  • Applications
  • Advantages
  • FAQ

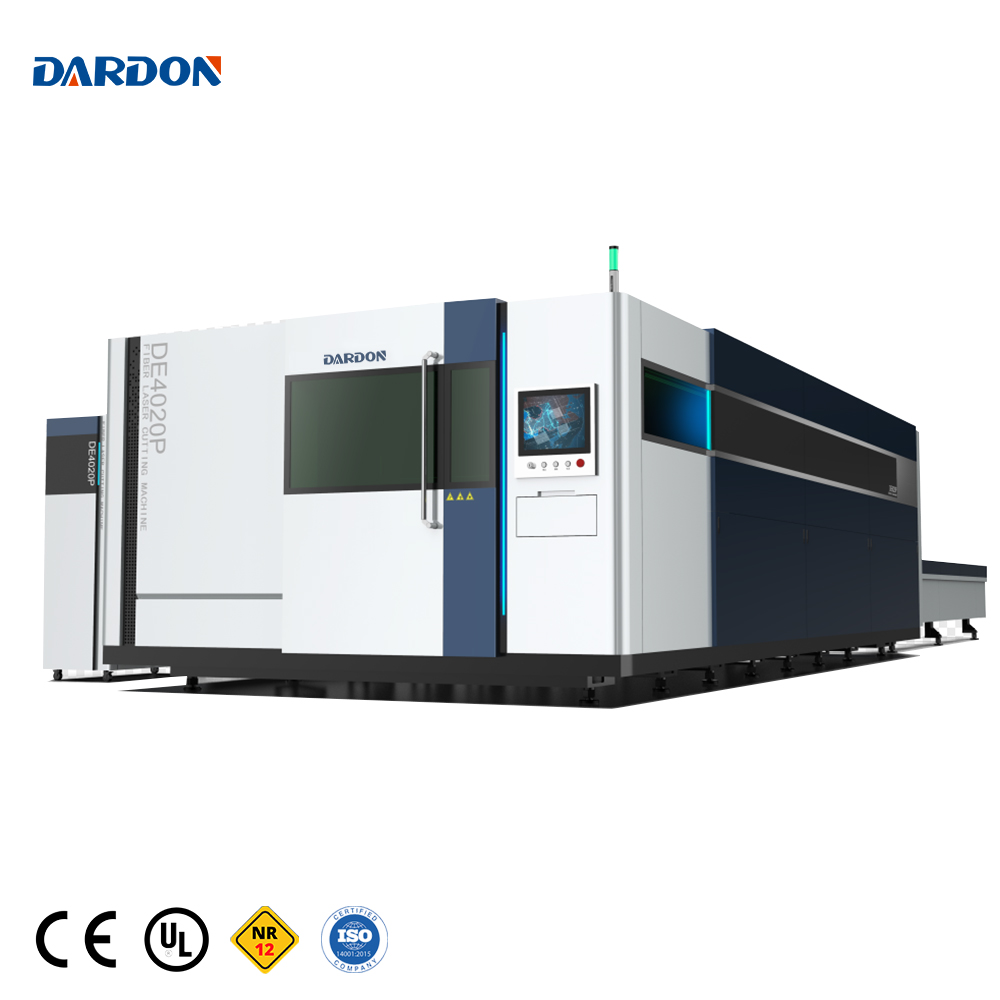

DE series is an exchange-platform sheet metal laser cutting machine. In the field of laser cutting, it keeps innovating and leading the in-depth application of laser cutting technology. It deeply understands customer pain points across industries with mature and stable performance.

Equipped with aviation aluminum beam and a new worktable design, it features more comprehensive and optimized functions, as well as an intelligent cutting system with richer and smarter capabilities.

Built with Dadong Laser’s professional process database, it delivers simpler and more flexible operation. Reserved optional industrial intelligent interface, remote cloud interface and operation diagnosis mode make production more efficient, helping customers maximize economic value.


DE (2).jpg

Applicable Industries:
sheet metal processing, rail transit, shipbuilding, automobile, engineering machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, grain machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchen and bathroom hardware, decoration and advertising, laser external processing services, and other machinery manufacturing and processing industries.
Cuttable Materials:

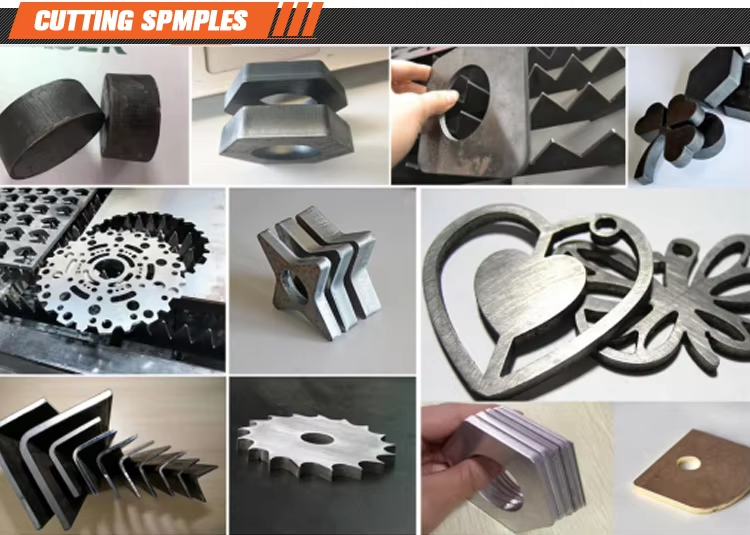

high carbon steel, low carbon steel, stainless steel, aluminum alloy, brass, red copper, pickled plate, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, nickel plate and all other metal materials.

1. Parallel exchange workbench

Larger load-bearing capacity; the contact structure enables heavier weight bearing.

2. Full machine lubrication system

All lubrication ports are one-click controllable. The guide rails and gear racks of moving parts realize automatic full lubrication, improving operational accuracy and stability.

3. Fiber laser cutting machine

Adopts a continuous fiber laser, featuring high electro-optical conversion efficiency, superior beam quality, high energy density, wide modulation frequency, high reliability, long service life and maintenance-free operation. It is widely applied in welding, precision cutting, cladding, surface treatment, 3D printing and other fields.

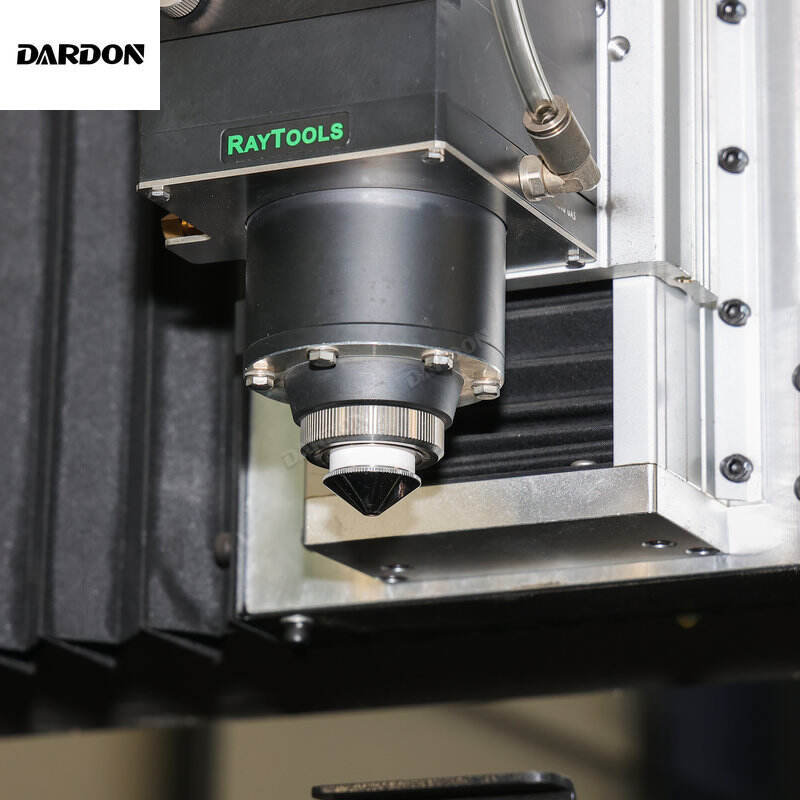

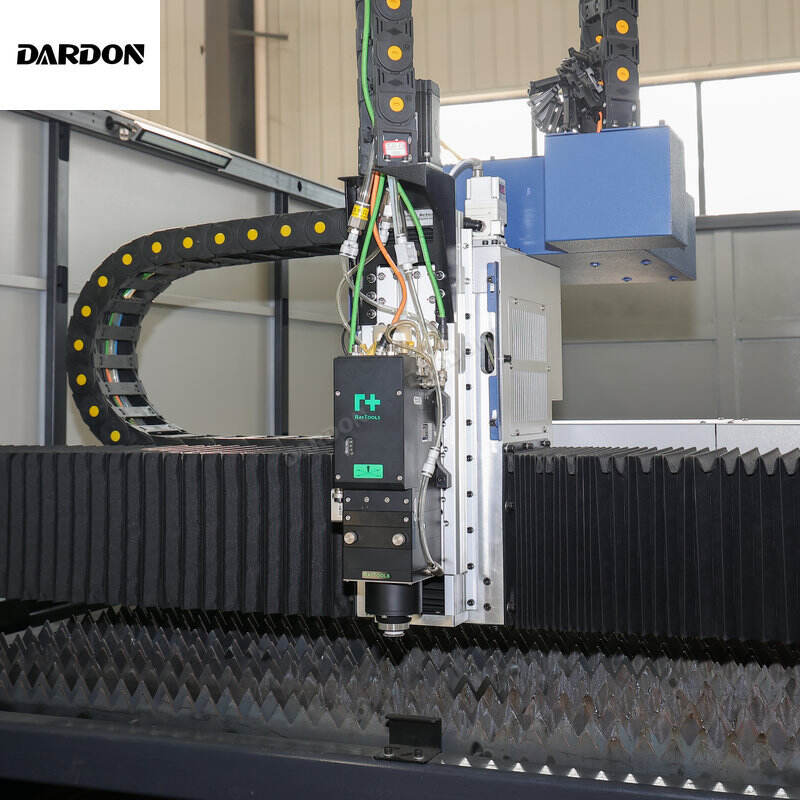

4. Cutting head and follow-up system

The cutting head adopts a high-speed capacitive sensor follow-up focusing system, which quickly responds to uneven workpiece surfaces and precisely controls the laser focus position to ensure cutting quality. Equipped with a high-precision capacitive sensor automatic tracking system, it achieves highly stable Z-axis floating control under system operation.

5. Cooling system

Professional dedicated laser chiller with excellent stability and high temperature control accuracy.

Q1: Why choose us over other suppliers?

A1: Our factory has decades of production experience and uses a full set of Japanese Mazak equipment to manufacture precision parts. Our high-quality machinery has given us a significant market position, with annual sales reaching 500 million.

Q2: What can you buy from us?

A2: CNC Turret Punch Press, CNC Press Brake, Fiber Laser Cutting Machine, Panel Bender, Automatic Production Line

Q3: What industries are our products suitable for?

A3: This product is widely used in metal processing industries such as power complete sets of equipment, chassis and cabinet, curtain wall decoration, household appliances, elevators, fire doors, air conditioners, kitchen equipment, office equipment, heavy machinery, shipbuilding, steel structure, etc.

Q4: What kind of payment do you accept?

A4: Generally, we accept T/T and L/C payment, 30% deposit and 70% payment before delivery. If you are our special customer, we can accept better payment method.

Q5: Our workers can't operate the machine, how to train the staff?

A5: We will send you the teaching video of the machine and 24-hour online service,we also support free training service

If you require on-site service, please let us know in advance; we support on-site training.
