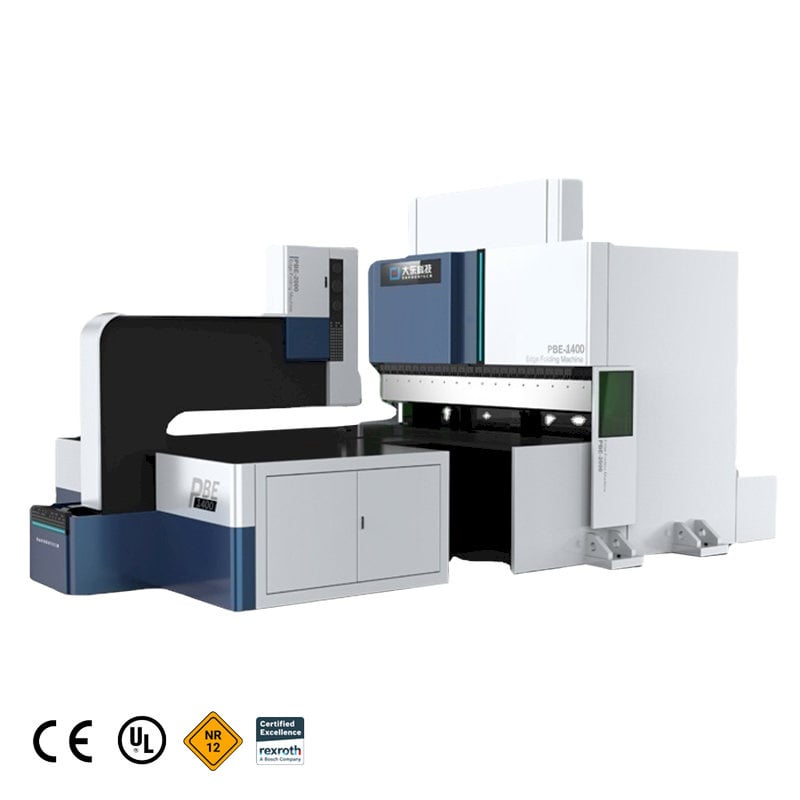

PBESeries Automatic Multi Side Bending Center Flexible Bender Center

The PBE series is a fully automatic bending center, which adopts servo motors as the main power source for precise output control.The machine body is constructed by steel plate welding followed by overall tempering treatment. With one-time clamping and precision machining by imported CNC equipment, it ensures high rigidity and processing accuracy of the frame.Equipped with the latest version of high-end CNC system as standard, the machine features high efficiency, precision and energy saving.

It is applied in precision sheet metal processing and automated production lines, and is especially suitable for both small-batch & multi-variety production and large-scale mass production scenarios.

One set of tools enables various bending processes.

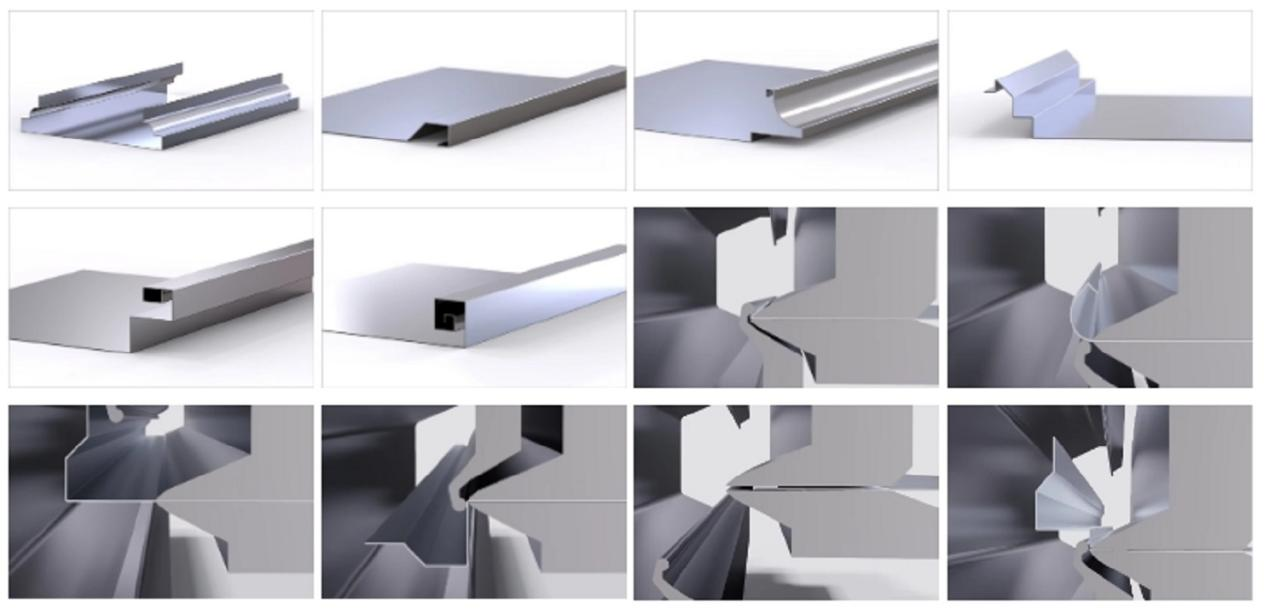

It can bend 90° angles, non-90° angles, circular arcs, and complex shapes in both forward and reverse directions.

1.Adopts a full closed-loop electric servo system supporting 16-axis simultaneous linkage, ensuring smooth bending motion and high mechanical coordination, which enables reliable execution of various complex combined movements.

2.To meet the high-intensity operation requirements of the bending center, the frame features an arch-type structure with reinforced, thickened and widened design for exceptional rigidity and stability.

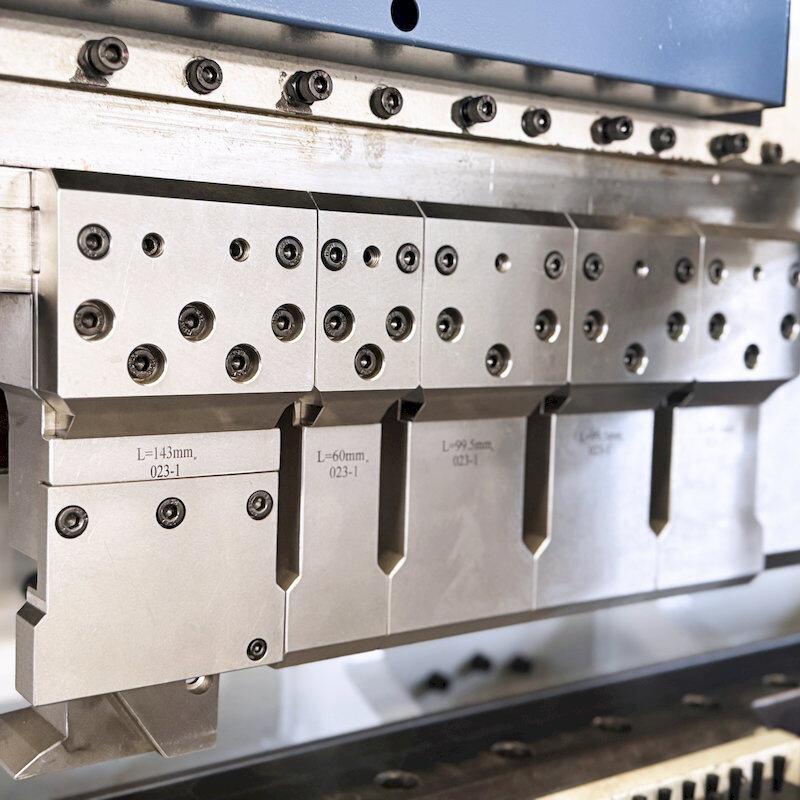

3.The machine is equipped with a complete set of molds including one set of clamping dies (with foldable edge horn dies), working dies and two bending dies, satisfying diverse bending processing requirements.

4.Intuitive menu-style graphical programming ensures easy operation and quick learning.

5.Supports 3D model import in STEP format; machining can be started directly after importing files.

• Comprehensive After-Sales Network: While committed to developing new products and improving product quality, our company has established a relatively complete after-sales service network both domestically and internationally.
• Full Installation Support: On-site installation and commissioning services are provided.
• Free Technical Training: Free operation training and consultation are available during installation and commissioning.

Q1: Why choose us over other suppliers?

A1: Our factory has decades of production experience and uses a full set of Japanese Mazak equipment to manufacture precision parts. Our high-quality machinery has given us a significant market position, with annual sales reaching 500 million.

Q2: What can you buy from us?

A2: CNC Turret Punch Press, CNC Press Brake, Fiber Laser Cutting Machine, Panel Bender, Automatic Production Line

Q3: What industries are our products suitable for?

A3: This product is widely used in metal processing industries such as power complete sets of equipment, chassis and cabinet, curtain wall decoration, household appliances, elevators, fire doors, air conditioners, kitchen equipment, office equipment, heavy machinery, shipbuilding, steel structure, etc.

Q4: What kind of payment do you accept?

A4: Generally, we accept T/T and L/C payment, 30% deposit and 70% payment before delivery. If you are our special customer, we can accept better payment method.

Q5: Our workers can't operate the machine, how to train the staff?

A5: We will send you the teaching video of the machine and 24-hour online service,we also support free training service

If you require on-site service, please let us know in advance; we support on-site training.
