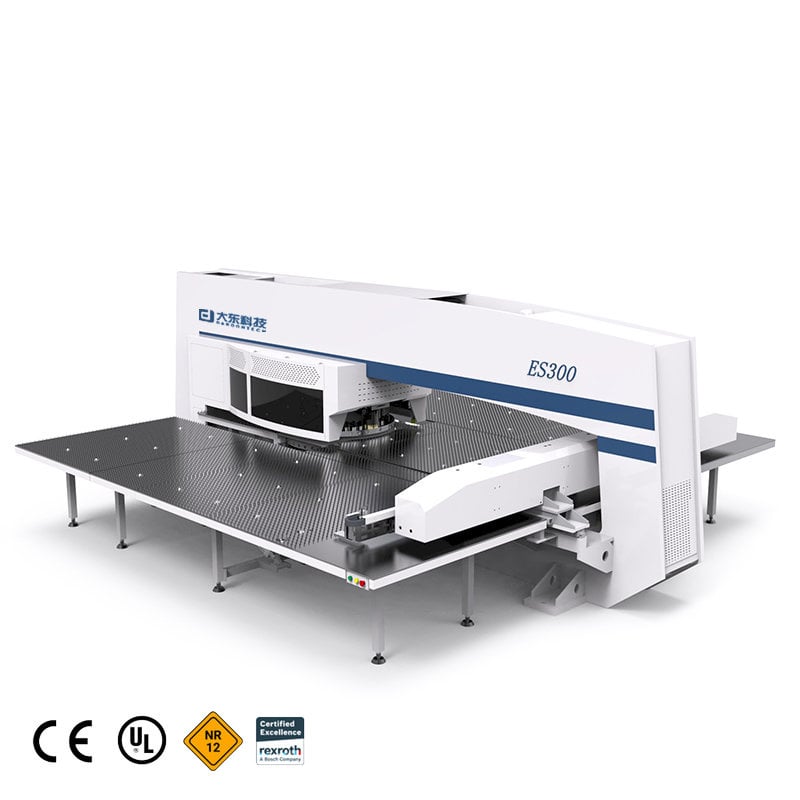

ES Series Cnc Punch Press 32 Stations Metal Sheet Fabrication Servo Turret Hole Punching

The ES300 adopts a servo direct-drive main transmission system, retaining the simple, mature and reliable advantages of the mechanical main transmission, while delivering superior performance over hydraulic main transmission. It features outstanding performance and powerful functions, including high efficiency, energy saving, low noise and high precision, supporting multiple processes such as punching, forming, beading, lettering and more.

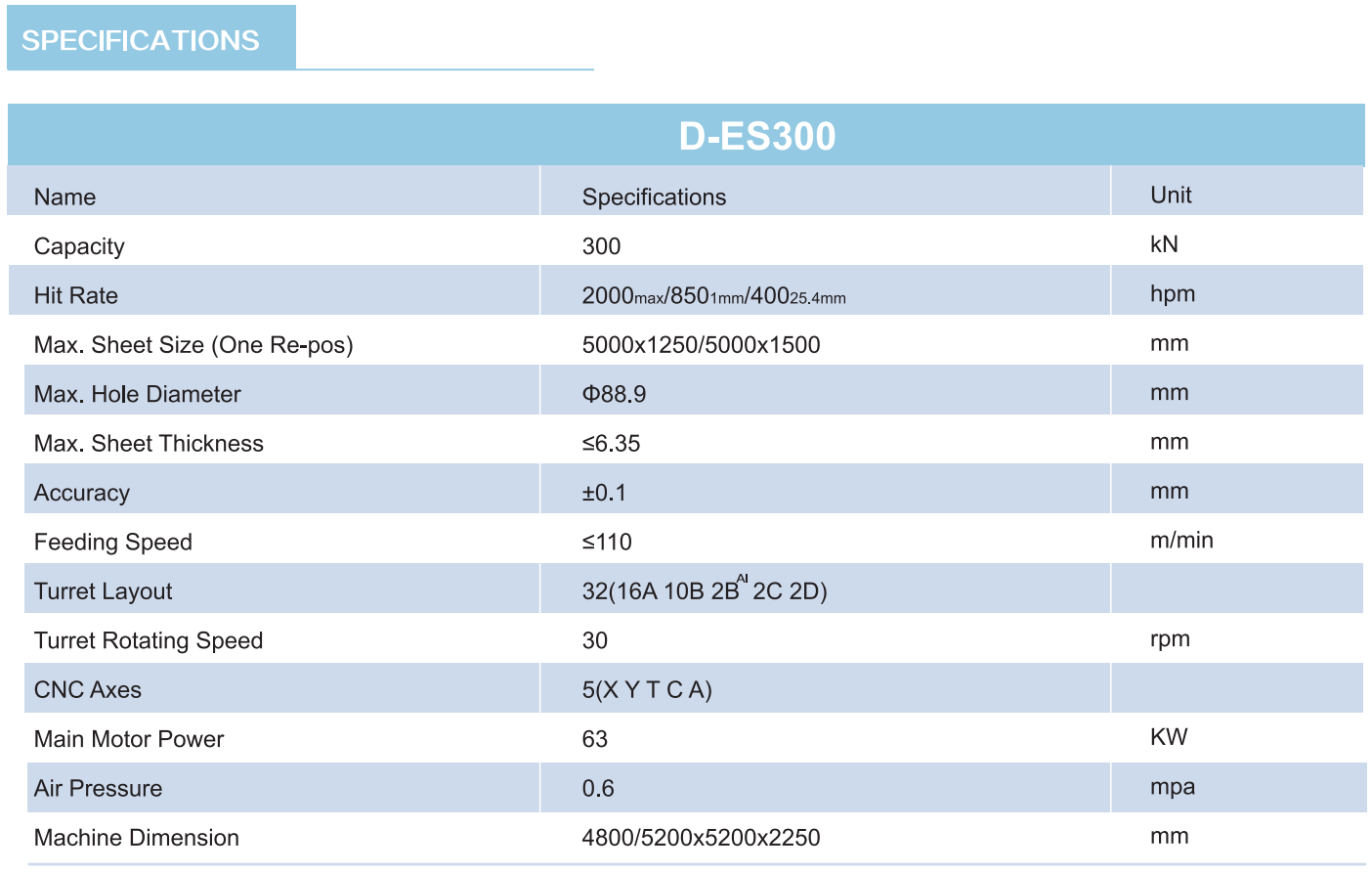

· Nominal force: 300 kN

· Processing sheet size: 5000×1250 mm (including one repositioning)

· Controlled axes: X, Y, C, T, A axes

The system is core-integrated with Windows operating system and nesting software, supporting programming via 2D CAD graphics. It allows batch drag-and-drop processing of DXF, DWG or IGES files for direct nesting.

· Servo system: Panasonic (Japan) / Delta AC servo motors and servo amplifiers

· Stamping power: Inovance all-electric servo motor

· Frame: Closed steel plate welded structure

· Key components: Imported linear guideways and ball screws

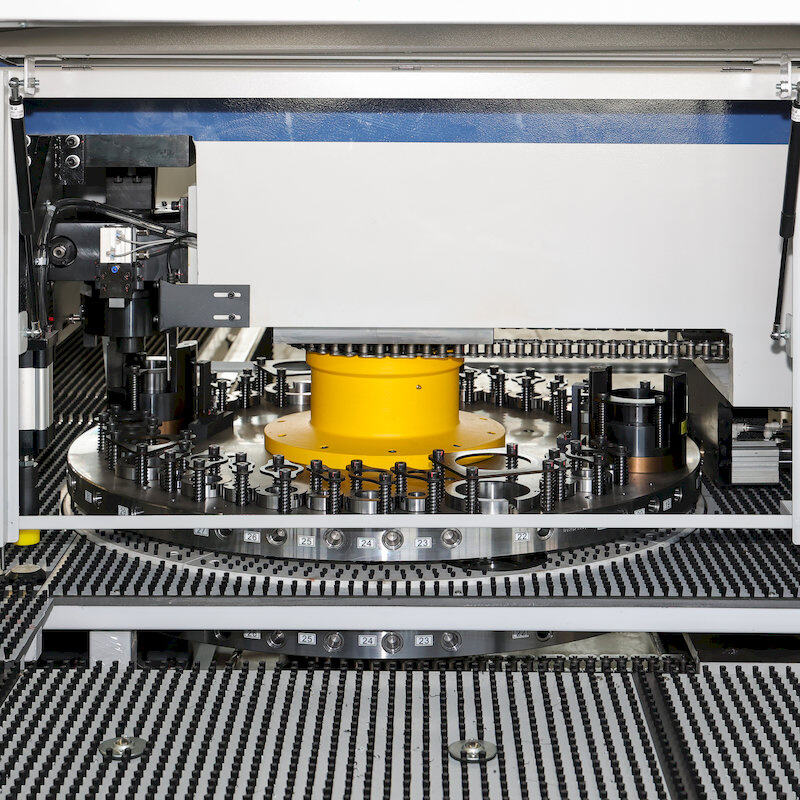

· Standard tooling: 32 sets of standard dies

It supports multiple processes such as punching, cutting, forming, rib rolling and marking.

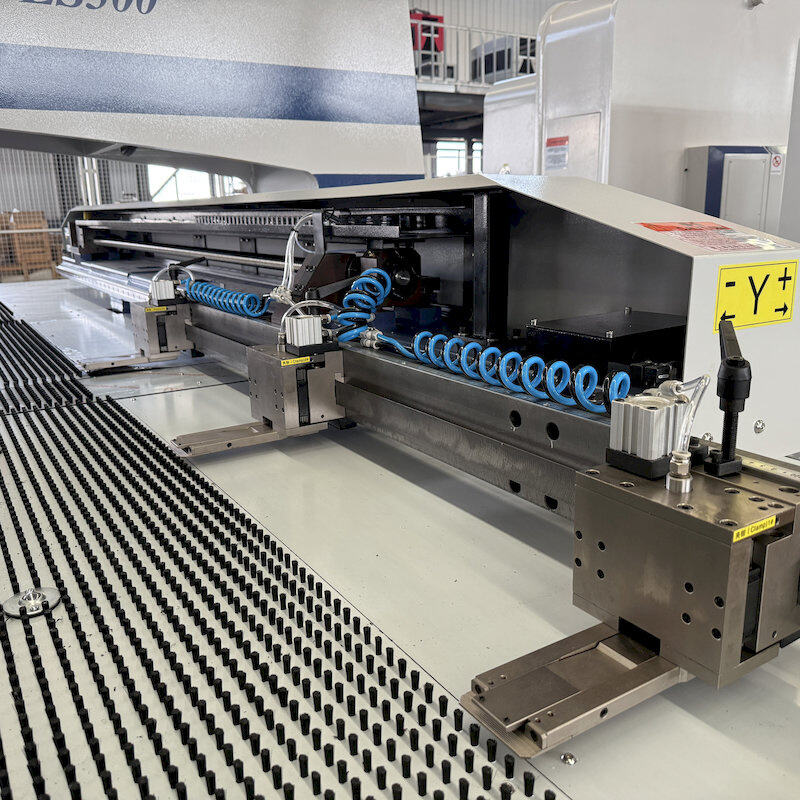

1.Clamp protection function with automatic avoidance enables blindareafree processing.

2.Equipped with a servodedicated stamping main body; the bed adopts a closed integral welded structure.

3.Flip table design with automatic flip control for the side auxiliary platform for convenient die replacement.

4.German Rexroth ball screws and linear guideways ensure high precision and long service life.

5.Capable of performing various standard and forming operations including beading, lettering, marking, knock-out holes, drawing, louver forming, trimming and corner cutting.

Q1: Why choose us over other suppliers?

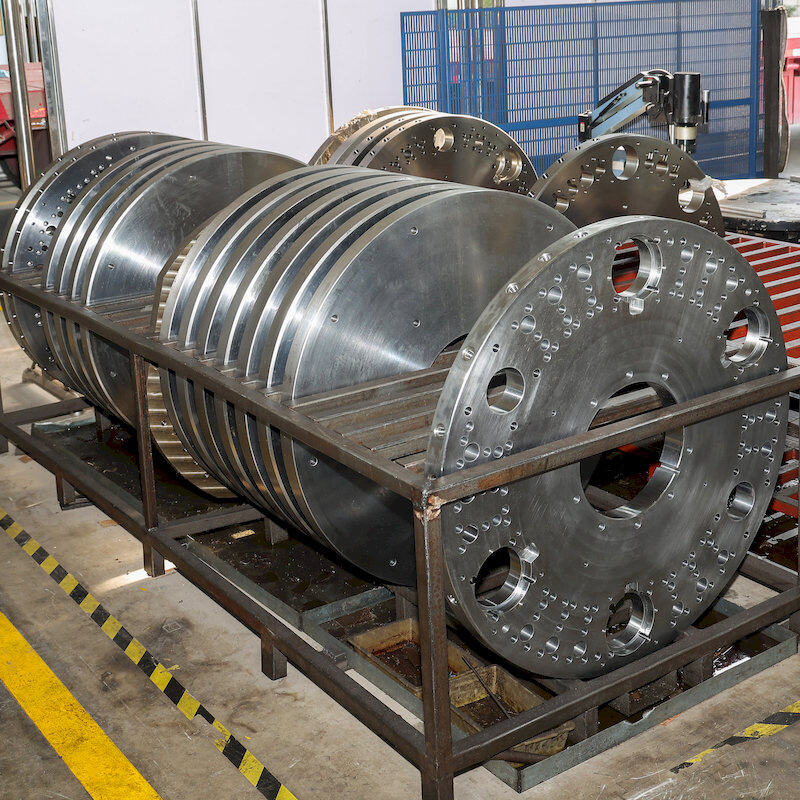

A1: Our factory has decades of production experience and uses a full set of Japanese Mazak equipment to manufacture precision parts. Our high-quality machinery has given us a significant market position, with annual sales reaching 500 million.

Q2: What can you buy from us?

A2: CNC Turret Punch Press, CNC Press Brake, Fiber Laser Cutting Machine, Panel Bender, Automatic Production Line

Q3: What industries are our products suitable for?

A3: This product is widely used in metal processing industries such as power complete sets of equipment, chassis and cabinet, curtain wall decoration, household appliances, elevators, fire doors, air conditioners, kitchen equipment, office equipment, heavy machinery, shipbuilding, steel structure, etc.

Q4: What kind of payment do you accept?

A4: Generally, we accept T/T and L/C payment, 30% deposit and 70% payment before delivery. If you are our special customer, we can accept better payment method.

Q5: Our workers can't operate the machine, how to train the staff?

A5: We will send you the teaching video of the machine and 24-hour online service,we also support free training service

If you require on-site service, please let us know in advance; we support on-site training.
