PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal
PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal

PDS Series Servo Hydraulic CNC Press Brake Machine For Sheet Metal

The PDS Series is an advanced electro-hydraulic hybrid CNC press brake designed for high-efficiency metal bending. By utilizing a dedicated servo motor to control the hydraulic pump, it delivers over 50% energy savings, lower oil temperatures, and superior motion dynamics. Built with an overall tempered, ultra-rigid welded frame and equipped with a premium closed-loop synchronization system, the PDS series ensures unmatched durability, precise bending angles, and seamless operation for customized fabrication.



  • Hybrid Servo Drive: Electro-hydraulic system saves over 50% energy.
  • ±0.02mm Precision: German Rexroth closed-loop synchronization control.
  • Ultra-Rigid Frame: Welded and overall heat-treated bed for zero deformation.
  • Smart DELEM Control: DA-53TX 15.6" touchscreen for intuitive programming.
  • World-Class Parts: Built with ESTUN servos, Schneider electronics, and Parker seals.
Size:
Get a Quote
  • Description

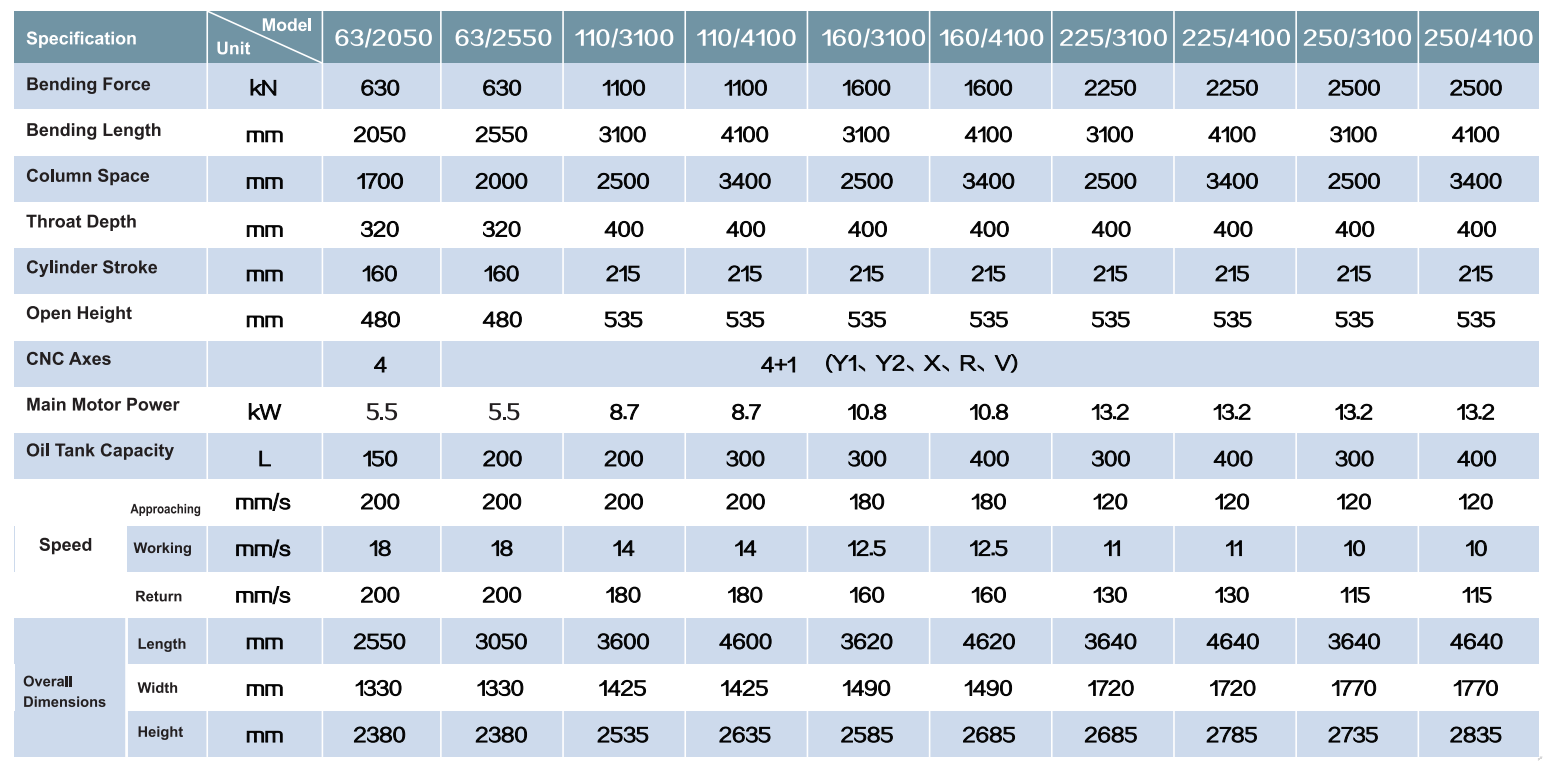

  • Specifications
  • Automation Solutions
  • FAQS

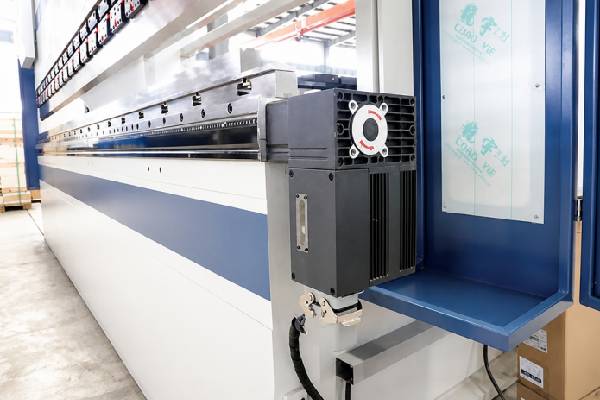

PDS 1.jpg

Crowning technique

Standard high-precision oblique wedge crowning device.

CNC precise compensation ensures accurate bending.

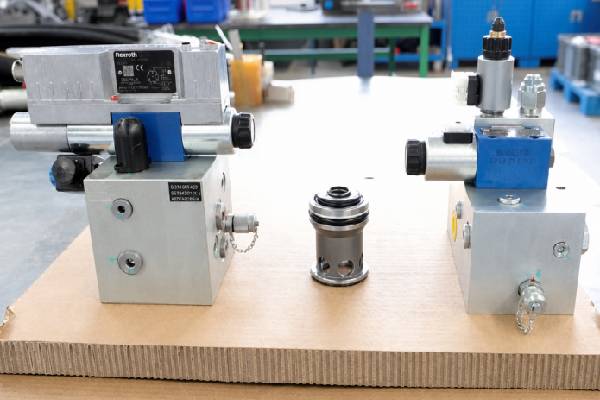

PDS 2.jpg

Hydraulic system

Equipped with a full set of German imported hydraulic components.

High response, lower failure rate, smoother and faster operation.

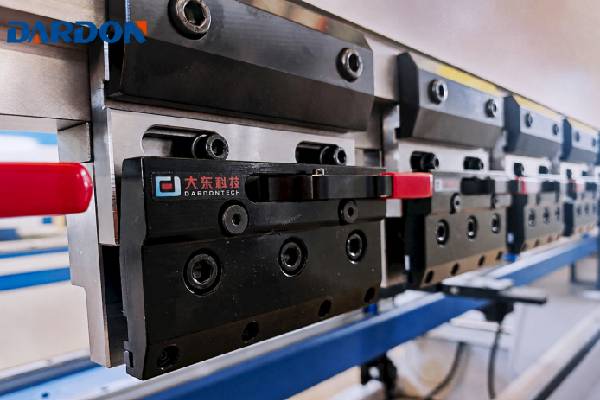

PDS 3.jpg

Quick clamp

Standard multi-functional quick clamp.

Front tool loading/unloading, high efficiency.

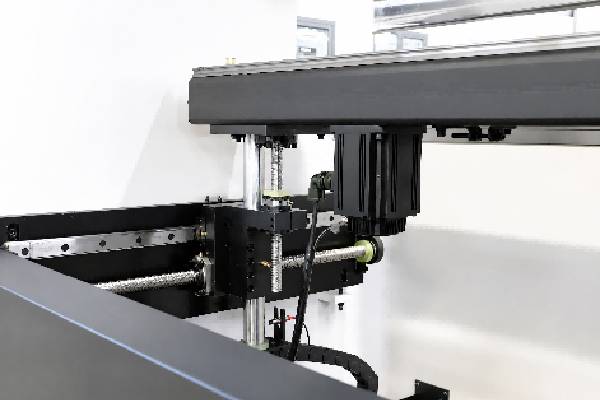

PDS 4.jpg

Number of CNC axes

Standard 4+1 (Y1/Y2/X/R) axes to meet diverse bending needs.

Optional 6+1, 8+1 axes with customizable automation.

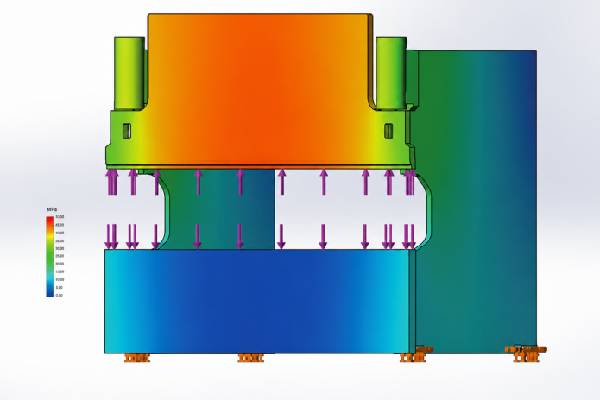

PDS 5.jpg

Machine tool design

Optimized by finite element analysis.

Ensures precise punch-die alignment and workpiece accuracy.



  • Q: Is a multi-axis backgauge (e.g., 4+1, 6+1, 8+1) worth the investment?
  • A: A standard 4+1 axis (Y1, Y2, X, R + Crowning) handles ~80% of regular square parts. However, for stepped flanges, tapered/asymmetric parts, and multi-station staging setups, DADONG's 6+1 or 8+1 axis backgauge (with independent X1-X2 fingers and motorized Z1-Z2) positions automatically—slashing handling setup time by over 50%.
  • Q: Can the machine handle deep boxes and complex U-channels without tool collision?
  • A: Yes. DADONG provides 3D Offline Simulation & Bending CAM Software. Before running the machine, you simply import your STEP file: 1) It auto-determines optimal bending sequences; 2) Recommends tooling setups; 3) Performs 100% virtual collision detection. Furthermore, we offer customized extended daylight openings, deeper throat depths, and specialized gooseneck/window tools.
  • Q: Why does the middle angle deviate from the ends on long bending parts (2.5m–4m), and how is it fixed?
  • A: This is caused by natural structural deflection under high pressure. DADONG press brakes feature CNC-Controlled Automatic Mechanical Crowning. The CNC calculates the precise deflection curve based on material properties, sheet thickness, and length, driving high-precision motorized wedges to dynamically compensate across the bed—ensuring uniform ±0.2° angle consistency from end to end.
